Active Vibration Isolation systems produced by Park Systems Accurion effectively eliminate ambient vibrations from delicate measuring equipment, ensuring highly accurate results
Active Vibration Isolation Products for Small- and Large-Scale Instruments.
Desktop Isolation Tables
Accurion i4 Series
It is ideal for isolating high-resolution measurement equipment from building vibrations and other disturbances, while providing active compensation in all six degrees of freedom.
The isolation effect starts at 0.6 Hz, achieving the maximum performance of -40 dB at 10 Hz, where 99.0% of the vibration is isolated
Settling time only 0.3 s
Accurion Nano Series
It combines high-end active vibration isolation with ultra-small dimensions and is employed in the isolation of very small and lightweight applications. Its competitive pricing allows the use for educational settings and basic research, like entry-level scanning probe microscopes.
Active isolation starts at 1 Hz (passive isolation > 200 Hz), no compressed air supply is needed, AC power from an electrical outlet is sufficient, simple handling — no tuning or load adjustment required
Settling time only 0.3 s
Modular Isolation Elements
Vario systems are element-based modular vibration isolation systems, consisting of at least two isolation elements and an external control unit. This product series has been designed for the isolation of mid to large-scale instruments and customer-specific applications.
Includes three standard lengths to match the size of various setups.
The compact dimensions and its flexibility render this product series ideal for installations in customer-specific applications.
Active isolation starts at 1 Hz (passive isolation > 200 Hz), no compressed air required – only requires a power supply, Convenient manual load adjustment – automatic load adjustment optional
Settling time only 0.3 s
Laboratory Tables
Accurion Workstation Series, representing a comprehensive solution, the ergonomically designed Workstation Series perfectly combines an active vibration isolation system with a rigid support structure. There are several standard versions available, as well as customizations.

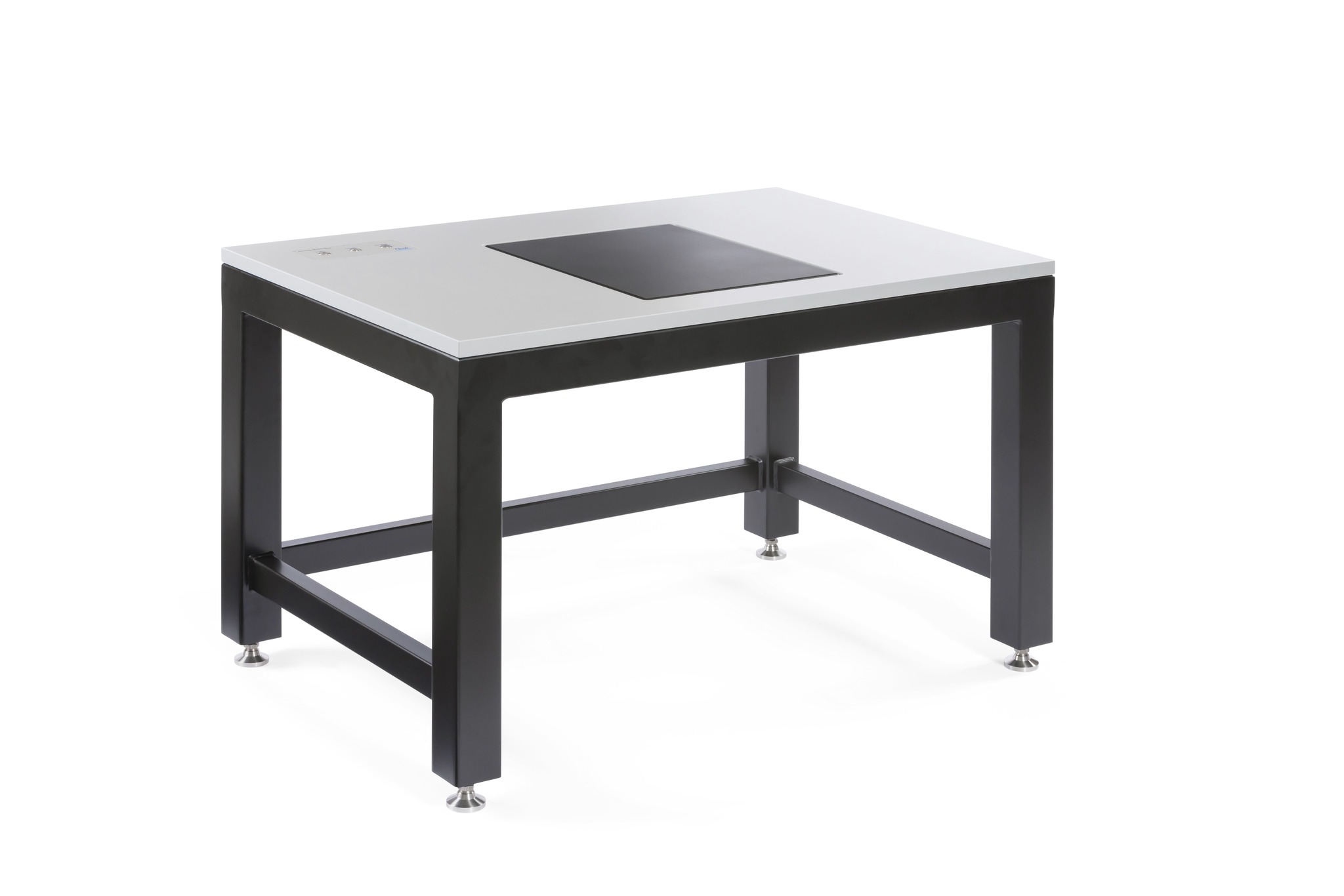

Workstation i4
It is designed to be used with optical microscopes or microscope/SPM combinations. The isolated surface is surrounded by a scratch-resistant MDF plate, convenient for arm resting or as storage area. Any of the three i4 versions can be integrated into a workstation
Automatic load adjustment and transportation lock, no compressed air required – only requires a power supply, Allows ergonomic seating, excellent position stability and stiffness, Wide range of standard versions and customizations available
Settling time only 0.3 s

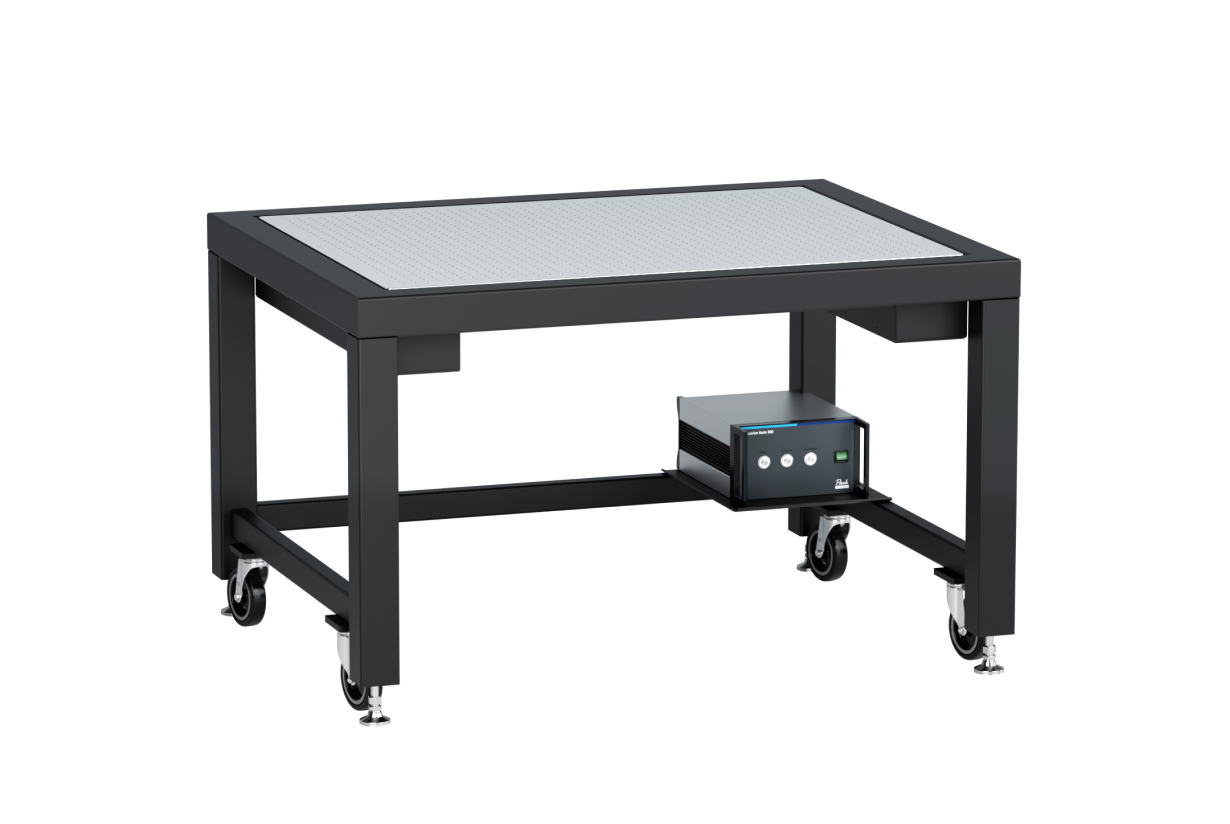

Workstation Vario
Systems come with a steel frame embedded optical breadboard as working surface. As extensibility, the surrounding frame can be used for the installation of acoustic enclosures. Compared to the Workstation i4, these versions are suitable for supporting larger and heavier applications.
Automatic load adjustment and transportation lock, no compressed air required – only requires a power supply, Allows ergonomic seating, excellent position stability and stiffness, wide range of standard versions and customizations available.
Settling time only 0.3 s

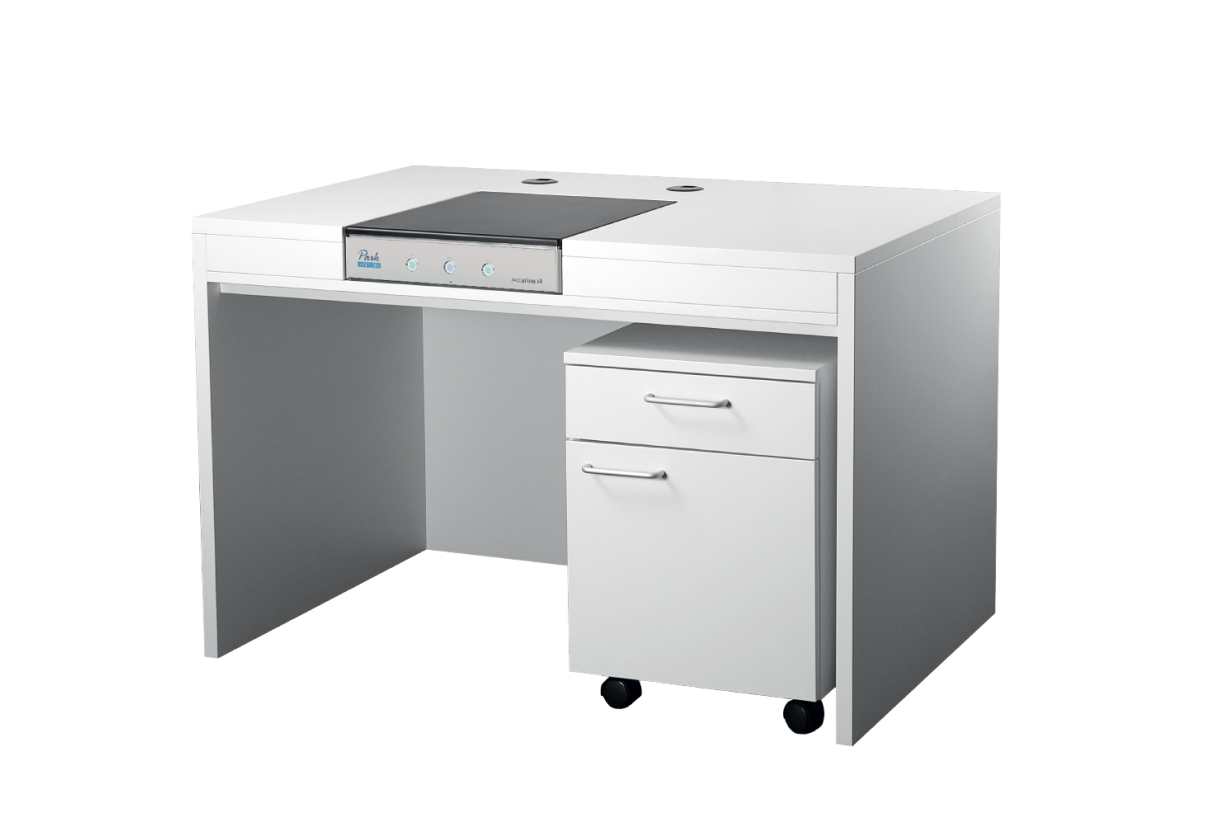

IVF workstation
Has been specially designed for the use with in-vitro-fertilization so that embryologists can ergonomically sit in front of their microscope. It is a perfect match for various microscopic set-ups which enables the user to work with increased efficiency and reliability. Aside from functionality and stability, we paid particular attention to medical standards like proper surface coating. A mobile cabinet is available as optional accessory.
Automatic load adjustment and transportation lock, no compressed air required – only requires a power supply, Allows ergonomic seating, excellent position stability and stiffness, wide range of standard versions and customizations available.
Settling time only 0.3 s

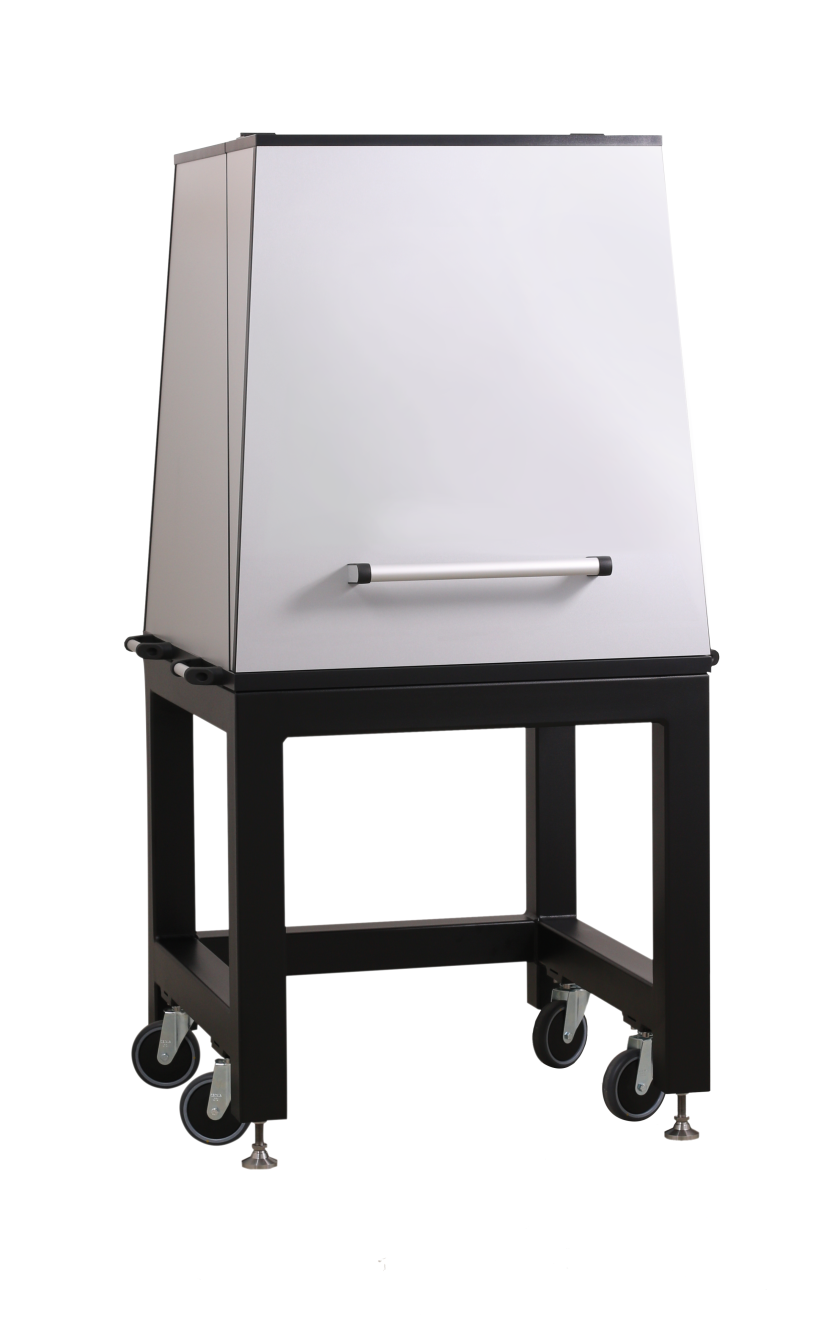

Acoustic Enclosures
Accurion Acoustic Enclosures protect sensitive equipment from airborne noise affecting measurement data. They come as an accessory to the active vibration isolation systems, but are also available as a Stand-Alone-Unit.
- Broadband damping of acoustic noise
- 4° wall inclination to avoid sound wave spreading
- Smooth gas pressure spring opening
- Light-weight design compared to steel enclosures
- Easy access
- Customized design available
Heavy load isolation systems
Are designed for installation on the floor directly underneath the application. They are the ideal solution for the vibration isolation of scanning electron microscopes and similar equipments. Available products are isolation platforms and heavy-duty vibration isolation elements.
Accurion Sandwich Series
High performance floor platforms. Sandwich platforms offer compact dimensions and excellent isolation performance. Each Sandwich consists of precision machined 15 mm thick top and bottom plates, surrounding 4 to 8 integrated vibration isolation elements as well as an external control unit.
A load range of up to 1200 kg can be achieved. Customized versions with modified dimensions or increased load ranges are available on request.
No natural low frequency resonance – excellent vibration isolation characteristics in the low frequency range, Active isolation starts at 1 Hz (passive isolation > 200 Hz), No compressed air required – power supply only, Excellent position stability and stiffness
